Caline CP-203 Guitar Pedal Power Supply
8 Isolated Output Power Tuner Adjustable 9V/12V/18V Guitar Effect power
Material: Aluminum alloy
Power plug: AC 110V-240V
Output A adjustable 9V/12V/18V DC @100mA
Output B adjustable 9V/12V/15V DC @500mA
2 outputs 9V DC@300mA
4 outputs 9V DC@100mA
Product Size: 19.5*9.3*7.8CM/ 7.67*3.66*3 inch
Net Weight: 580G
Plug: US / EU / UK/ AU Plug
1 x Caline CP-203 Power supply
1 x Adapter
10 x Cables(as picture show)
1 x English user manual
1, The Caline CP-203 Transparent Multi DC Power Supply. The CP203 will give you a visual sense of beauty and clear indication of power.
2,It has 8 separate outputs for powering a variety of different effects including drum machine, multi effect pedals and digital delay.
3,The 2 adjustable Output Jack Sockets(A and B) gives you the ability and versatility to select different output voltage:
Output A is adjustable between 9V/12V/18V. Output B is adjuatable between 9V/12V/15V.
4,The circuit has anti-ground noise and anti-interference treatment to give you a 100% clear sound from your effect units.
5,Each isolated output has short circuit protection which is clearly indicated by the LED lights of the transparent DC Jack socket at the front of the unit.

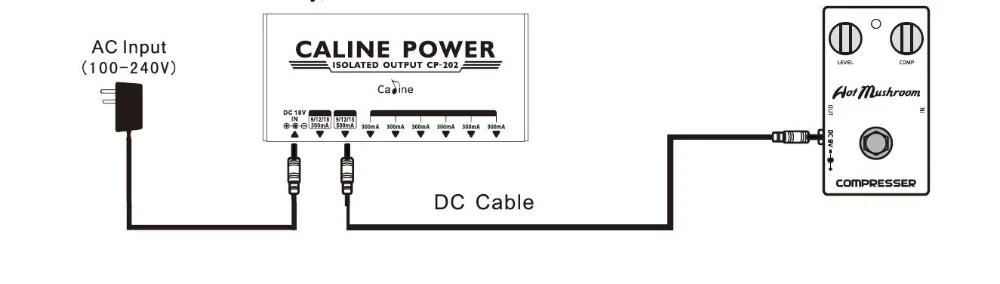

1. If the input polarity of the electrical device is , please connect the DC Power Cable to the device directly, as shown:

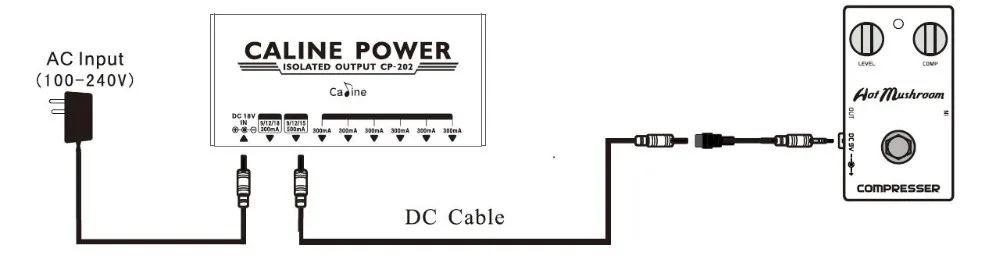

2. If the input polarity of the electrical device is , please connect Polarity Reversal Cable to the DC Power Cable, then connect the device, as shown:
Incorrect polarity would damage this unit, please make sure correct positive and negative polar before wiring.
